Price: GBP94.26
(as of Feb 21,2026 06:40:29 UTC – Details)
Product description
PRODUCT INTRODUCTION What makes a good suspension fork?
A suspension fork has three main duties.One: the spring needs to protect the rider from violent hits when you roll foolishly into a crazy line, while being sensitive enough to absorb the small bumps.Two: the damper needs to control the spring, absorbing forces and maintaining grip.Three: the fork needs a stiff chassis for carving hard lines while under pressure.To achieve these duties,Bucklos has developed this fork to meet all needs without letting it empty your wallet.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
INSTALLATION GUIDE VIDEO How to install this suspesion air fork?
Please keep the original packaging, so that the product does not have the original packaging when it is not suitable and needs to be returned.
Please check if all parts are intact .
Please follow the steps to install the bike.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
PRODUCT EXPERIENCE Why does the front fork feel so cool?
According to the rider’s weight and road conditions, adjust the most comfortable pressure value to obtain the best experience and provide good conditions for riding.It is no longer just a means of transportation, but a way to delight the mind.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
1 Damping Adjustment
2 Manual/Remote Lockout
3 Air Chamber
4 Brake Support
5 Best Choice
1 Cross Country 2 Commuting 3 Traveling 4 Trail 5 Ebike
Bucklos XM 26/27.5/29 inch Air Suspension Fork
How to judge whether this suspension fork is suitable for your bike？

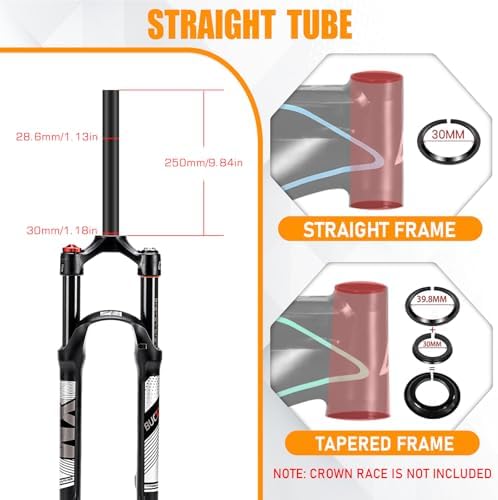

Please check your model and parameters carefully before you place your order （Straight/Tapered,Manual/Remote lockout,QR:9*100mm,disc brake.tire size).
How to adjust the slack on the lockout remote?
To adjust the lockout, look for a small hole in the side of the piece the wire slides into. It’s got a tiny allen key in there you turn left to loosen, pull the slack, then right to tighten it.
What’s the maximum pressure, tire width and weight of this front fork?
The front fork can withstand a maximum psi of 110-120,a maximum tire of 1.9″~2.5″, and a maximum rider weight of 95KG
What is the offset of the front fork?
This fork with 41mm offset.
Is the caliper mount “post” or “IS” mount?What size rotor do the post mounts fit for disc brakes?
It is the PM mount, the distance between the disc brake mounting holes is 74mm.And It is fitted 160mm rotor by default,180mm and 203mm rotor can also be installed, but a conversion column is required.
Product Comparison
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.2 out of 5 stars 623
4.3 out of 5 stars 73
3.9 out of 5 stars 129
4.3 out of 5 stars 60
4.3 out of 5 stars 226
4.0 out of 5 stars 212
4.2 out of 5 stars 419
Price
GBPÂ 94.26GBP94.26
GBPÂ 18.55GBP18.55
GBPÂ 96.48GBP96.48
GBPÂ 66.79GBP66.79
GBPÂ 59.37GBP59.37
—
GBPÂ 96.48GBP96.48
Size
26/27.5/29
–
26/27.5/29
20
26/27.5/29
26/27.5/29
26/27.5/29
Travel
120mm
–
140mm
75mm
120mm
115mm
120mm
Steerer Type
Straight/Tapered
–
Straight/Tapered
Straight
Straight
Straight
Straight
Axle Type
9X100mm
–
15X100mm
9X100mm
9X100mm
9X100mm
9X100mm
Lockout
Manual/Remote
–
Manual
Manual
Manual
Manual
Manual
ABS Adjust
✔
✘
✔
✔
✘
✔
✔
Disc Brake
✔
✘
✔
✔
✔
✔
✔
Rebound Adjust
✔
✘
✔
✘
✘
✘
✔
Rebound Adjustment: According to the characteristics of mountain bikes, the Compression damping can adjust to the comfortable air pressure value according to the rider’s weight and riding condition to achieve a better experience
Manual ABS adjustment: You can adjust the hardness and softness of the air suspension fork through the ABS manual according to the riding conditions
Material: Mountain bike suspension fork, Made of Aluminum alloy+Magnesium alloy
Package: 1 PC Bucklos Air Bicycle Suspension Front Fork (Boxed)
